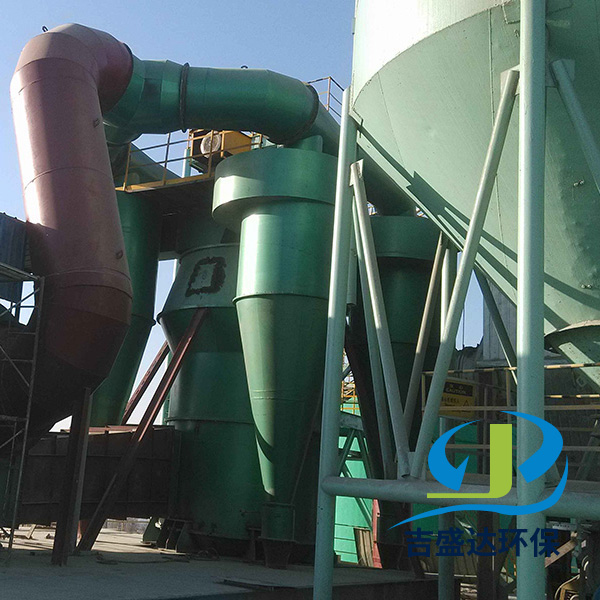

T-sepax efficient three separation powder separator is our company in the most advanced international powder separator principle based on the use of aviation aerodynamics. It not only absorbs the advantages of o-SEPA classifier classification, but also retains the characteristics of traditional classifier using four cyclone dust collectors to collect finished products under positive pressure. Therefore, the product system configuration is simple, the investment is low, and the output of the mill can be greatly improved. Its internal structure is reasonable and its effect is remarkable. It is the first choice to improve the output of the grinding system after the implementation of the new cement standard, leading the trend of the technological innovation of the powder selecting machine. The product breaks through the separation theory of "coarse and fine powder" in conventional closed circuit grinding system, dividing the material into three parts, namely coarse powder, medium coarse powder and fine powder.

Technical characteristics

Compared with the traditional powder separator, the T-SEPAX efficient three separation powder separator has the following outstanding advantages:

1, T-SEPAX efficient three separation powder separator adopts two levels of separation, three levels of dispersion, can be divided into three parts of the material, namely "coarse powder (D > 150um), medium coarse powder (60um < D < 150um) and fine powder" level one classification area to separate the coarse powder in the mixed powder collected in the coarse powder cone; The secondary classification area is the precise classification area, and the classification is completed in the annular region formed by the guide blade and the straight cage rotor. Due to the separation of coarse particles, eliminate the interference of coarse particles, therefore, high classification accuracy, powder selection efficiency of more than 85%.

2, T-SEPAX efficient three separation powder separator and similar size of centrifugal, cyclone, rotor type powder separator compared to much higher output, so more suitable for large-scale production needs. Advanced reasonable structure allows the selection of powder air volume. The yield and feed varied in a wide range without affecting the efficiency of powder selection, and its classification performance was very stable.

3. Advanced classification principle. Combined with a variety of powder selection principles, the whole flow field was optimized by aerodynamics analysis method, so that the equipment resistance was significantly reduced, the powder selection efficiency was higher, energy saving and consumption reduction was very obvious. The rotor of the powder separator is equipped with a vortex finishing device. The air flow in the rotor rotates relative to the rotor to the rising part, so the gas flow field on the surface of the classifier ring is uniform and stable, and the relative error of any air flow is less than 5%. After the airflow enters the rotor, the driving force of the rotor is reduced due to the moment of momentum, and the driving power is saved and the wear is reduced.

4. The powder selecting machine adopts stepless speed regulation. Fineness adjustment is convenient, sensitivity is reliable, and the adjustment range is wide.

5, optimize the design of the powder selection area, the space range of the lifting area. T-sepax high efficiency three separation separator compact structure, small volume, can be used in any grinding equipment composed of closed circuit grinding system. It is suitable for open-flow grinding, single closed circuit grinding and double closed circuit grinding, especially for semi-final grinding and final grinding system with roller press. It is the best grading equipment.

6, powder separator easy to wear parts, such as spreading plate, cyclone barrel, snail Angle, wind guide blade and rotor are made of wear-resistant materials or anti-wear process, its wear rate is very low. New manganese plate is used for lining in powder selection chamber, which effectively prolongs its service life.

7. The bearing seal under the main shaft adopts a new design scheme, which effectively solves the two big problems of bearing ash entering and lubricating oil leakage, and effectively extends the service life of the lower bearing.

8. When designing the foundation of powder selecting machine, the principle of mechanical shock absorption is adopted to make the resonance frequency of powder selecting machine and foundation not close to the natural frequency of powder selecting machine, which overcomes the resonance phenomenon and fundamentally solves the vibration problem of powder selecting machine that has plagued manufacturers for a long time.

9, coarse powder tube, medium coarse powder tube and fine powder tube adopt double lock air valve, greatly reduce the air leakage rate of the system. It overcomes the defects of dust in the operation of the old powder selecting machine.

Yancheng Jishengda Environmental protection Engineering Co., Ltd. has long been committed to the production and development of energy-saving and environmental protection equipment in the building materials industry. It is a manufacturer specializing in the production and sales of building materials machinery and energy-saving and environmental protection equipment in China. Adhering to technological innovation, the company has formed three pillar industries of environmental protection equipment and environmental protection engineering technology, powder selection equipment and grinding technology, drying equipment and drying engineering technology. Now we have more than 20 property rights patents: rotary kiln professional bag dust collector, large line spraying pulse long bag dust collector, efficient eddy current separator, coal mill dynamic separator, efficient double rotor separator, three cylinder dryer, circulation reciprocating multi-cylinder dryer and so on. Service Hotline:139-6208-6422
